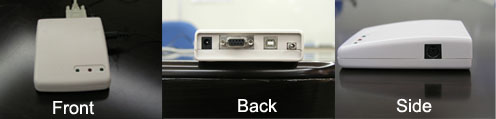

AudioPro Plus Brief Introduction

AudioPro Plus is a proprietary interface between PC and miniature digital products manufactured by Micro-DSP Technulogy Co., Ltd. MDSP products include digital hearing aids, speech correction devices, communication headsets, etc. Since it was first introduced in 2001, it has well been received along with our exciting products. It is completely designed and specially made to meet the needs of our clients in various fields.

Features:

• Built-in USB port easily connected to any newest PC.
• When using USB port, the external power source is no longer needed.
• Three indicator lights are more user friendly.
• On/Off Switch for better contrul.
• Completely designed aerodynamic outlook.
• Lighter in weight.

Technical Specifications:

• PC Interfaces
  • The RS232 COM port
  • Serial port RS-232
  • Connector DB9
  • Baud Rate 115,200
• The USB port
  • Serial port USB
  • Connector USB-B
  • Baud Rate 9,600
• Power Supply
  • RS232 COM port
  • 9VDC <1VA
• USB port
  • 5VDC from PC
• Dimensions
  • 120×95×30mm
• Operating Environment:
  • Temperature:5℃-40℃
  • Relative Humidity: 30-90%
